Ortho Insight 3D Bridge

Ortho Insight 3D is an imaging software. Website: http://motionview3d.com

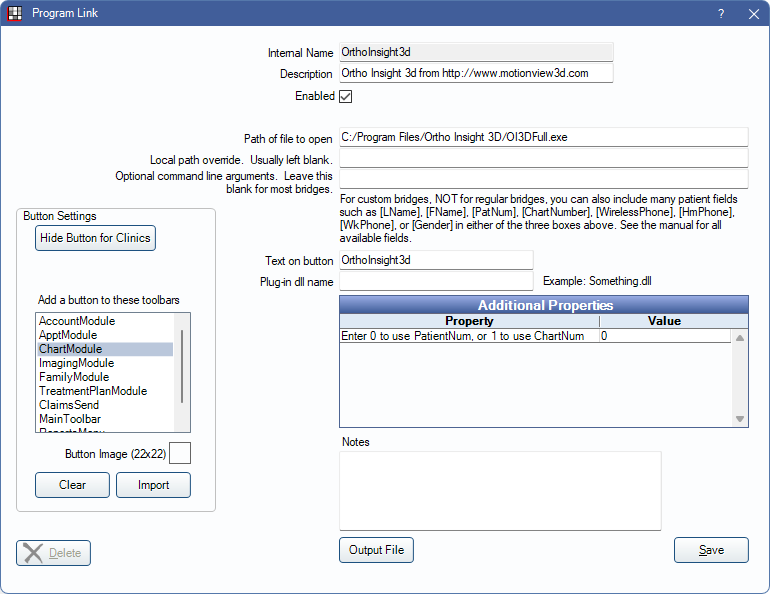

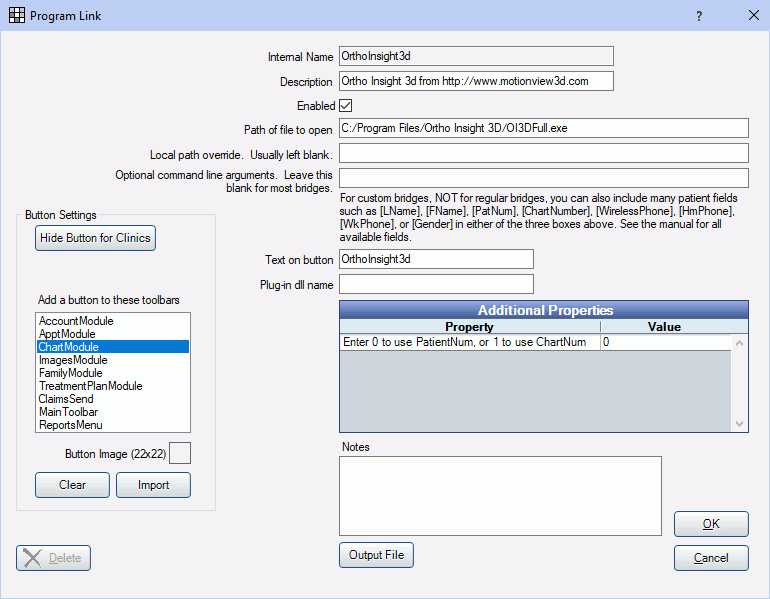

To enable the bridge:

  1. In the Main Menu, click Setup, Program Links. Double click on Ortho Insight 3d from http://www.motionview3d.com.
  2. Check the Enabled box.
  3. Verify the Path of File to open.
  4. Double click on a row in Additional Properties to change settings. You can use the PatNum (enter 0) or the ChartNum (enter 1) as the patient ID.
  5. Set up a clickable bridge button.
    1. Under Add a button to these toolbars, highlight where to display the button.
    2. Enter the Text on button.
    3. (Optional) Import an image to show on the button (22 x 22 pixels).
  6. Click OK.
