In the Main Menu, click Setup, Program Links. Double-click on Scanora from www.soredex.com.

Scanora is a cone beam tomography and optional 2D panoramic imaging system in one. Website: https://www.kavo.com/en-us/?lang=en-us.

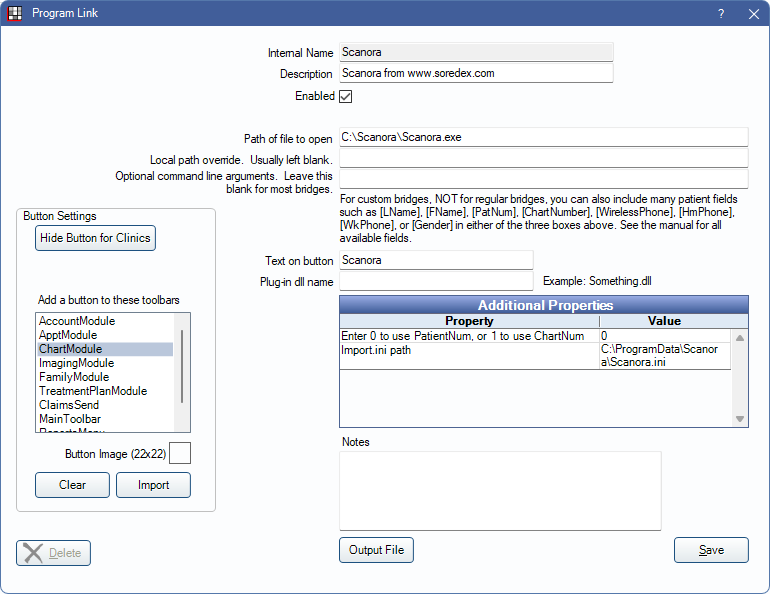

Bridge Setup

Enter the necessary settings to enable this bridge. Only the fields that need edits are listed:

• Enabled: Check to enable this bridge.
• Path of file to open: The location of the program executable. Defaults to C:\Scanora\Scanora.exe.
• Additional Properties: Double-click a row to change settings.
  • Enter 0 to use PatientNum, or 1 to use ChartNum: Determine which identifier is used to launch the patient in the bridge.
  • Import .ini path: Location of the .ini file. Defaults to C:\ProgramData\Scanora\Scanora.ini.
• Text on button: (Optional) Enter the text that is displayed for the bridge button.
• Button Settings: Determine the visual behavior of the bridge button.
  • Hide Button for Clinics: If using clinics, determine which clinics this button should and should not display for.
  • Add a button to these toolbars: Determine which toolbars this button should display under. Defaults to ChartModule.
  • Button Image: (Optional) Import an image to show on the button (must be exactly 22 x 22 pixels).

Click Save to keep changes.

Technical Details

This is an example of what the ini should look like:

[PracticeManagementInterface]

CLEAR_PRACTICE_MANAGEMENT_AUTOMATICALLY = 1

USE_PRACTICE_MANAGEMENT = 1

PATID = 443672

PATLNAME = Test1

PATMNAME =

PATFNAME = Scanora

PATSOCSEC = 123456789

PATBD = 1980-10-20

PROVIDER1 = Jessica Castaneda, FNP

PROVIDER2 = doc Testnew

ADDRESS1 = 1234thst

ADDRESS2 =

CITY = Albany

STATE = OR

ZIP = 97321

HOMEPHONE = 5415222222

WORKPHONE = 5412222222

EMAIL1 = abc@gmail.com

The ini file should be in the ANSI encoding file format with a leading blank line.
