Open Dental Software - Schick CDR Dicom Bridge

Schick CDR Dicom Bridge

In the Main Menu, click Setup, Program Links. Double-click on Schick from www.schicktech.com.

Schick is a digital imaging software. Website: www.schickbysirona.com.

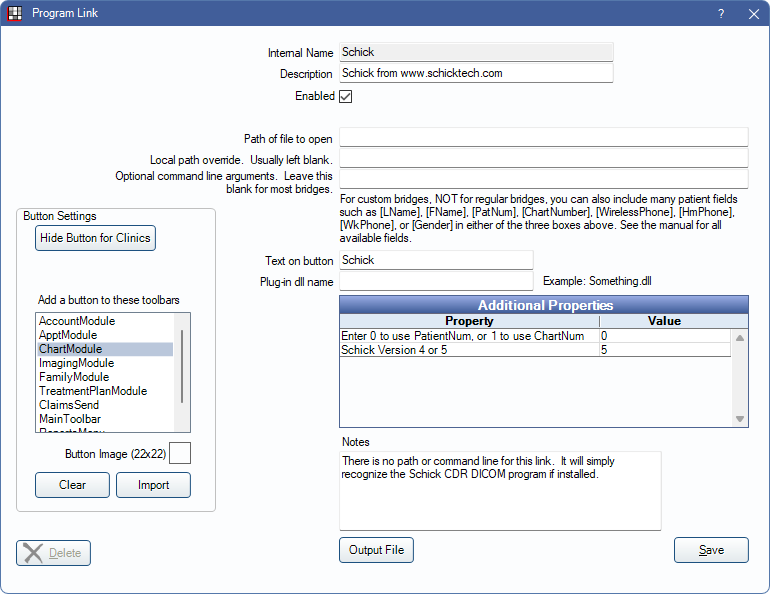

Bridge Setup

Enter the necessary settings to enable this bridge. Only the fields that need edits are listed:

Enabled: Check to enable this bridge.
Additional Properties: Double-click a row to change settings.
- Enter 0 to use PatientNum, or 1 to use ChartNum: Determine which identifier is used to launch the patient in the bridge.
- Schick Version 4 or 5: Enter the version of Schick the office is using. Defaults to 5. Version 4 applies to any version prior to version 5.
Text on button: (Optional) Enter the text that is displayed for the bridge button.
Button Settings: Determine the visual behavior of the bridge button.
- Hide Button for Clinics: If using clinics, determine which clinics this button should and should not display for.
- Add a button to these toolbars: Determine which toolbars this button should display under. Defaults to ChartModule.
- Button Image: (Optional) Import an image to show on the button (must be exactly 22 x 22 pixels).

Click Save to keep changes.

Within Schick, make sure that it is set to use bridge mode.

Schick versions older than v3.5 will not reuse the exam window.

For Windows 10, the minimum requirement is CDR DICOM 5.

The Apteryx Data Grabber may be used instead of the built-in bridge: https://apteryx.com/product/datagrabber/.
