Sheet Line and Rectangle

Lines and rectangles are sheet field types that can be used to organize information on a sheet.

In Edit Sheet Def, click Line or Rectangle.

Fixed lines and rectangles are Sheet Field Types that can be added to a sheet background.

Lines

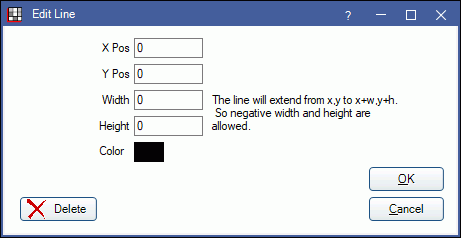

When editing a sheet, click Line or double-click a Line field from the Fields list.

X / Y Pos: Enter the X and Y positions to place the line on the sheet.

Width / Height: Enter the height and width of the line. Negative values are allowed. Entering a Height value will create a diagonal line.

Color: Click to select a Color.

Rectangles

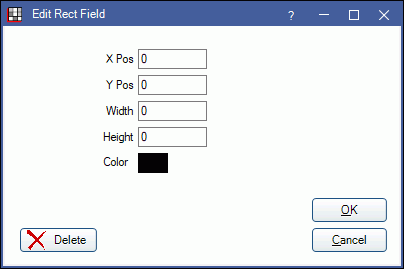

When editing a sheet, click Rectangle, double-click a Rect field from the Fields list, or double-click the rectangle from the sheet.

Rectangles are typically used to create checkboxes, however to mark the checkbox electronically, a Checkbox or Radio Button is needed.

X / Y Pos: Enter the X and Y positions to place the rectangle on the sheet.

Width / Height: Enter the width and height of the rectangle.

Color: Click to select a color.
