ICD-10 Codes

Diagnosis codes can be sent with procedure codes (e.g. for Medical Insurance). If you need to attach ICD-10 diagnosis codes to procedures, first download the code system, then assign the code.

Diagnosis codes can also used for EHR.

October 1, 2015: ICD-10 codes are required for HIPAA covered transactions. See CMS.gov ICD-10.

Downloading Codes

Downloading ICD diagnosis codes is optional.


Download or update ICD code systems using the Code System Importer. You can open the importer via the main menu, Setup, Chart, EHR, Code System Importer, or on the ICD9/10 window click Import. Highlight the code system (e.g. ICD10CM), then click Download Updates.

Default ICD Code System

Set diagnosis coding system defaults in Chart Module Preferences:

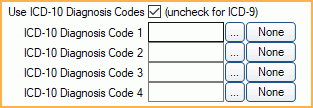

Set the code system for a specific procedure on the Procedure Info - Medical tab by checking or unchecking Use ICD-10 Diagnosis Codes (uncheck for ICD-9). The field labels for diagnosis codes will change to reflect the setting.

Assigning Codes

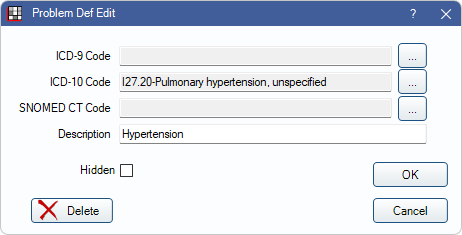

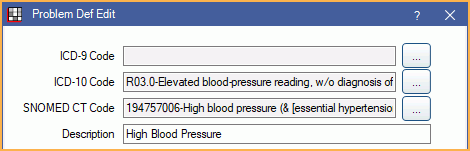

For Problems: Attach codes on the Problem Def Edit window. Click the pick list button [...] to select.

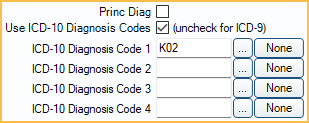

For Procedures: Attach codes on the Procedures - Medical tab. Enter the code(s) manually or click a pick list button [...] next to Diagnosis Code 1, 2, 3, 4.

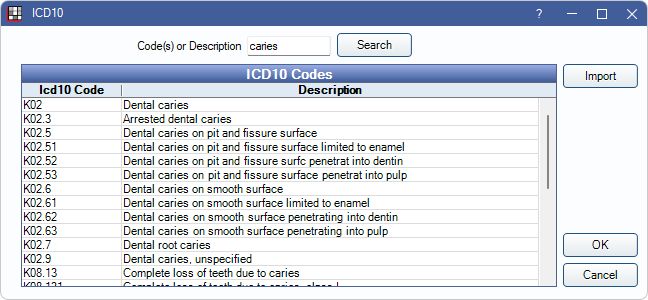

If choosing from a pick list, at first the list will be empty. Enter the first few characters of the description or code, then click Search. To see all diagnosis codes, leave the code and description blank, then click Search.

Double click the code to select it and close the window.
