Chart orthodontic hardware and track ortho treatment progress from the Ortho tab.

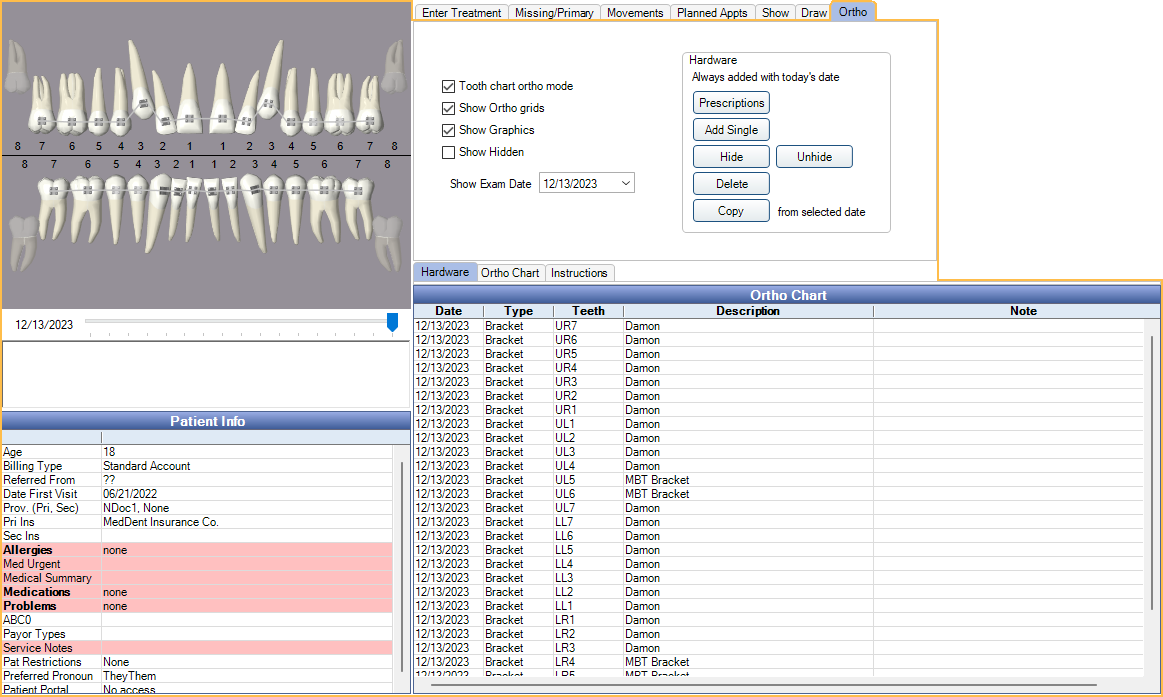

In the Chart Module, click the Ortho tab.

Users can choose to see only information relating to the patient's orthodontic treatment and hide general chart notes and procedures.

In Ortho Setup, enable Show Ortho button and tab in Chart module to use this feature.


Tooth chart ortho mode: Determines the view of the odontogram.

Show Ortho grids: Determine if the ortho grids or progress notes are shown.

Note: When Automatically check and uncheck ortho mode and show grid checkboxes based on selection of Ortho tab, is enabled in Preferences, Tooth Chart ortho mode and Show Ortho grids are automatically checked when opening the Ortho tab and unchecked upon exiting the Ortho tab.

Show Graphics: Determine if ortho graphics (e.g., brackets) are shown on the Graphical Tooth Chart.

Show Hidden: Determine if Ortho hardware marked hidden is displayed on the Graphical Tooth Chart when or is listed in the Hardware tab.

Show Exam Date: The exam date corresponding to the hardware listed in the Hardware tab and Graphical Tooth Chart. Click to view a different exam date. Adding new hardware, prescriptions, or copying from an existing exam creates a new exam with today's date.

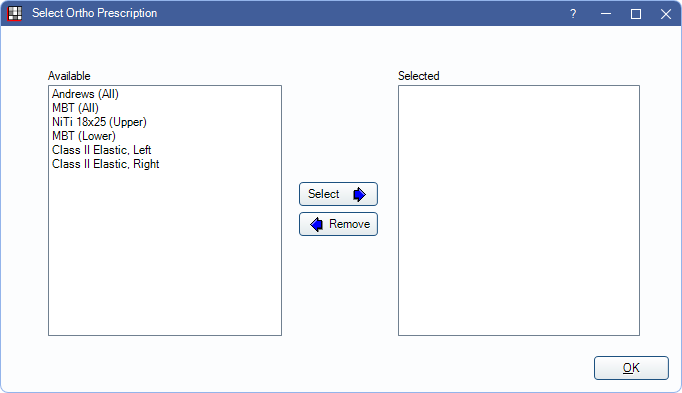

Prescriptions: Click to chart Ortho Hardware to the patient using Ortho Prescriptions. Ortho Prescriptions are assigned to specific Ortho Hardware items and treatment areas. The Select Ortho Prescription window opens.

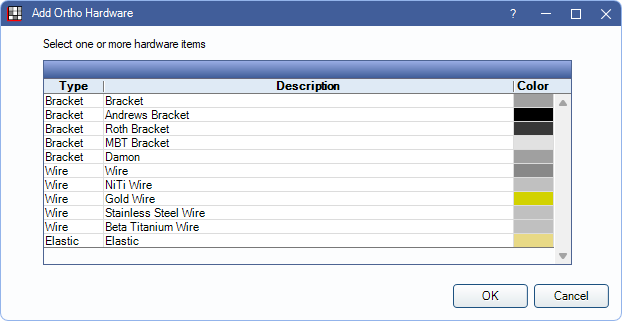

Add Single: Select teeth and click to add Ortho Hardware. The Add Ortho Hardware window opens.

Hide / Unhide: Select hardware items from the grid and click Hide to remove graphics from the tooth chart. Select hardware items again and click Unhide to display hardware on the tooth chart again.

Delete: Select hardware items from the grid and click to delete.

Copy: Select an exam date and hardware items from the grid and click to copy to today's date. If no items are selected, all items from the previous exam date are copied to today's date.

Hardware Tab

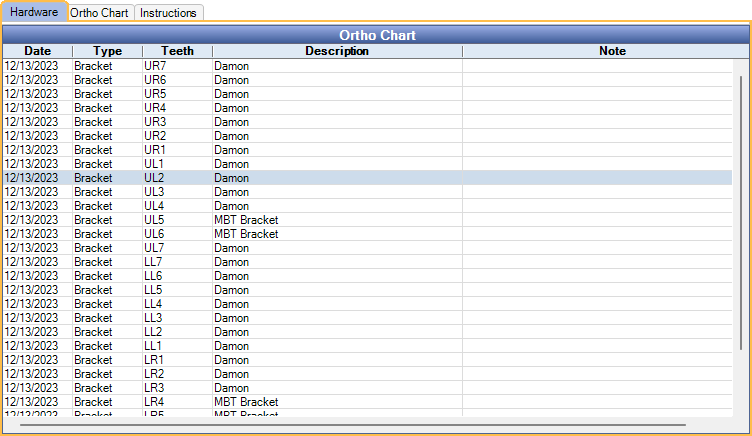

Displays all hardware information for the selected exam date.

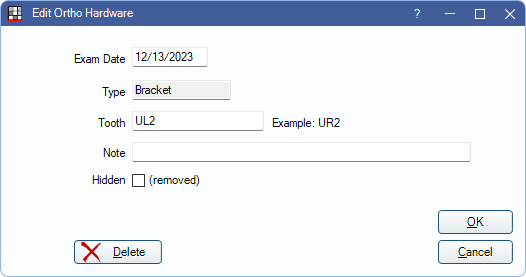

Double-click a hardware item to edit information or delete hardware.

Right-click selected rows to delete hardware.

Ortho Chart Tabs

The tabs displaying after the Hardware tab show the Ortho Chart tabs. Depending on Ortho Chart Setup, Setup Tabs, the labels of the tabs and number of tabs may differ. The default is one tab labeled Ortho Chart.

Information in these tabs is read-only. Double-click anywhere in the grid to launch the Ortho Chart window to make changes or add a new entry to the Ortho Chart.
